Mission XV KB2 EVO Boro Bridge

Mission XV

$139.99 USD

Shipping calculated at checkout

Sold Out

Mission XV KB2 Evo Boro Bridge

Mission XV introduces their latest iteration to the fan favorite KB2 RBA, the KB2 EVO! You get the same great KB2 deck we have all come to know and love, as well as the new EVO chamber reducer which completely enhances both flavor and wicking.

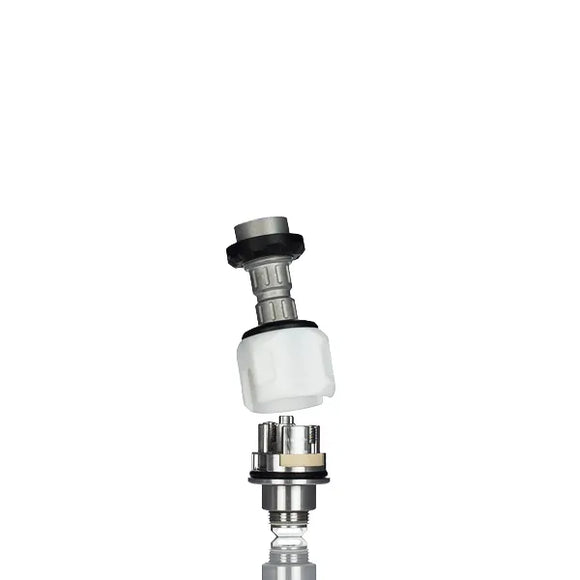

Installing your reducer just takes a few simple steps. Remove the black peek chamber reducer from the spares bag. Unthread your airflow pin from the bottom of the deck. This will allow for the deck to come apart. Remove the metal and white peek insulator from the bottom of the post. Then insert the post into the black chamber reducer/insulator (may require tweezers to sit the post flush). Now line up the newly assembled insulator and post back onto the deck, and screw in your desired airflow pin. You now have your new reduced KB2 EVO deck ready to build and wick!

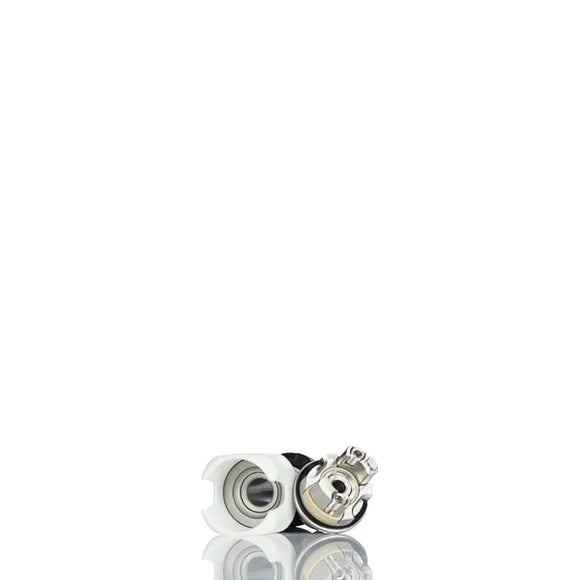

The KB2 bridge build deck utilizes a two post construction. Large coil slots make installing your coils a breeze and the quality grub screws ensure a secure connection. Included with your KB2 is a locking ring that threads into the top of your chimney, securing the bridge in one position. Not only does this lock ring help to provide a solid resistance reading, but also functions as a way to keep your bridge from spinning when the flush nut is tightened down.

Switching to the dotBoro system:

For those users who want to use the Mission XV KB2 EVO bridge in side of their dotAIO, there are just a couple of steps you need to follow to fit the KB2 inside the dotBoro tank. First, remove the bottom threaded ring from your KB2. Replace this ring with the dotboro threaded ring that comes sitting inside your dotBoro tank. Finally, remove the original chimney and locking ring, the dotBoro tank comes with it's own downsized chimney to allow the kb2 to fit into into the dotBoro tank. You can tighten this chimney into the KB2 from the top of the dotBoro tank. You can use the key chain tool that is provided with your KB2 bridge.

Mission  XV dotBoro KB2 Conversion Kit

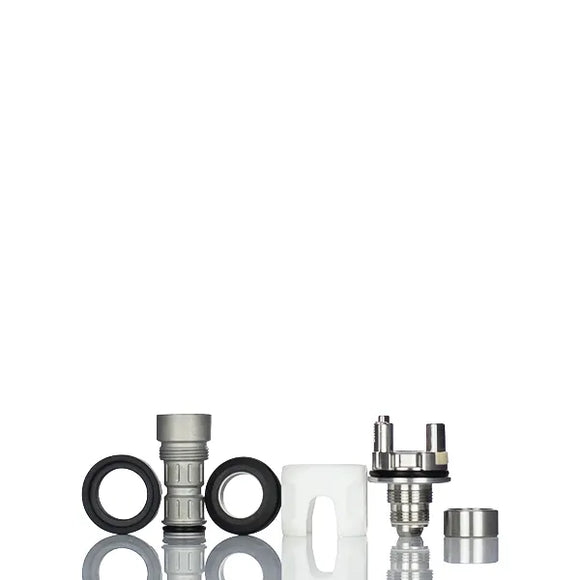

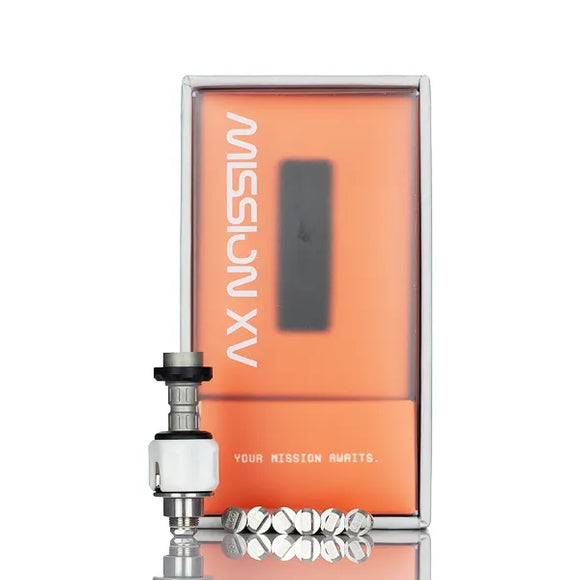

Mission XV KB2 EVO Bridge Includes :

  • 1 x KB2 Deck
  • 1 x PET-P EVO Barrel
  • 1 x Matte Stainless Steel Chimney
  • 1 x PVD-Coated Top Cap
  • 1 x PVD-Coated Lock Nut
  • 7 x Airflow Pins (4.3mm, 3.5mm, 3.0mm, 2.5mm, 2.0mm, 1.2mm, 1mm)
  • 1 x Spares Kit (includes EVO chamber reducer)
